HMB quick hitch can greatly improve the performance of the excavator. After assembling HMB quick hitch, it can quickly connect various excavator attachments such as buckets, rippers, hydraulic breakers, grabs, hydraulic shears, etc.

66
Best discount4
Best discount5
Best discount6

Ⅰ. Advantages:

1.It can change the accessories without disassembling the pin and axle. Thus realize faster installation and much higher efficiency

2.Use safety device of hydraulic control check valve to ensure safety

Ⅱ. Quick hitch Parameters

Please refer to the following information to select the type of quick hitch you want.

HMB quick coupler specification
Model Unit HMB Mini HMB02 HMB04 HMB06 HMB08 HMB08S HMB10 HMB17 HMB20
Operating Weight
(kg)
KG 30-40 50-75 80-110 170-210 350-390 370-410 410-520 550-750 700-1000
Overall Length(C) MM 300-450 520-542 581-610 760 920-955 950-1000 965-1100 1005-1150 1250-1400
Overall Height(G) MM 225-270 312 318 400 512 512-540 585 560-615 685-780
Overall Width(B) MM 150-250 260-266 265-283 351-454 450-483 445-493 543-572 602-666 650-760
Forearm open Width(A) MM 82-180 155-172 180-205 230-317 290-345 300-350 345-425 380-480 420-520
Retractable distance of oil cylinder(E) MM 95-200 200-300 300-350 340-440 420-510 450-530 460-560 560-650 640-700
Pin Diameter MM 20-40 40-45 45-55 50-70 70-90 90 90-100 100-110 100-140
Top to bottom pin distance(F) MM 170-190 200-210 205-220 240-255 300 320 350-370 370-380 400-500
Pin to Pin Center Distance(D) MM 95-220 220-275 290-350 350-400 430-480 450-505 485-530 520-630 620-750
Working Pressure Kg/c㎡ 30-400 30-400 30-400 30-400 30-400 30-400 30-400 30-400 30-400
Oil Flow L/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20 10-20 10-20
Carrier Weight ton 1-4 4-6 6-8 9-16 17-25 24-26 25-33 33-45 40-90



Picture 2

Ⅲ. Quick hitch Main Features

 Strong safety pin at accurate position

 High-abrasive front tiger mount design,long lifecycle

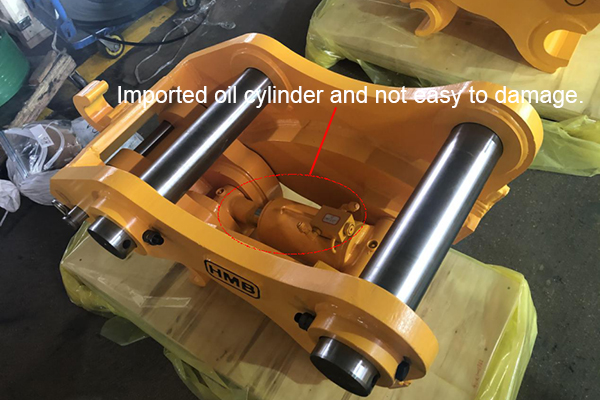

 Reinforced cylinder with top quality oil seals

 All pins with heat treatment

 less maintenance and replacement parts

Excellent High Strength Steel to increase durability and performance

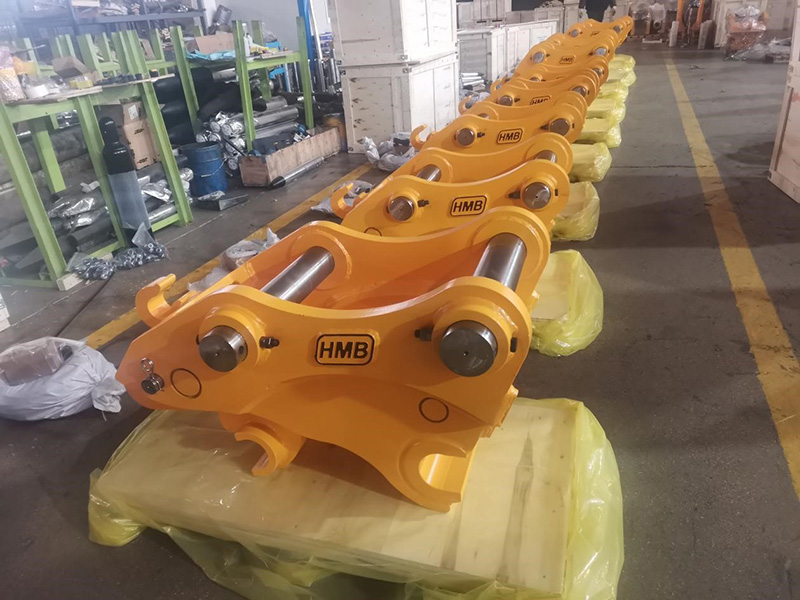

 Production detail:

detail

Ⅳ. Why should you need a Hydraulic quick hitch?

The configuration replacement is completed in ten seconds, which saves time and effort compared with manpower and improves work efficiency.

Ⅴ. Why choose our products ?

why-choose-us

Ⅵ. Raw materials

factory (1)
factory (2)
factory (3)
factory (4)
factory (5)
factory (6)

Ⅶ. Equipment

factory (7)
factory (8)
factory (9)
factory (10)
factory (11)
factory (12)

Ⅷ. Exhibition show

detail
Exhibition

Exponor chile

3

shanghai bauma

Exhibition

India bauma

Exhibition

Dubai exhibition

YanTai JiWei Construction Machinery Equipment Co.,Ltd. has been serving the industry for years. We have been committed to offering beautifully and practically designed, dedicated-made products, Our knowledgeable staff will help you find the most appropriate product for your need. We look forward to cooperating with you!
